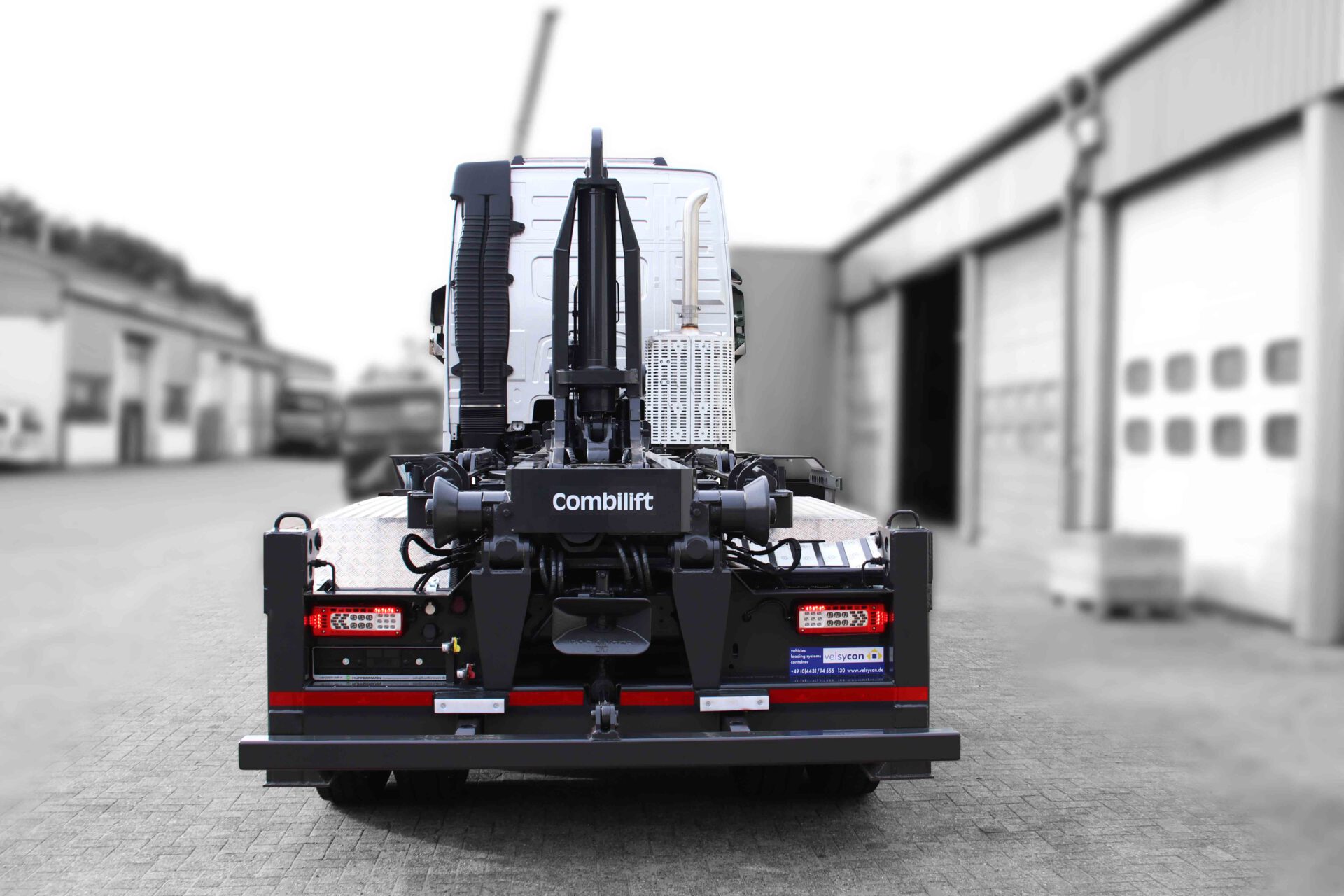

The unique velsycon COMBILIFT-system is able to move container in three different directions. The COMBILIFT, type CL 26.72, for three-axle chassis, is universally applicable.

It places mobile silos of 10 to 26 m³ and transports, as a classical hook roller tipper, mobile containers in accordance with DIN 30722.

Combilift kaufen und mieten bei Velsycon

Gallery CL 35.72:

COMBILIFT type CL 35.72

The COMBILIFT Type CL 35.72, for four-axle chassis is a real power pack. It is used as a silo placer and hook roller tipper - especially in the construction industry. Manoeuvrability, a high payload and optimum efficiency make this COMBILIFT so successful.

Individual or trailer unit

Individually or as a trailer unit the COMBILIFT system is unbeatable in providing building sites or other consumers with dry bulk material as well as for the various tasks in the disposal industry. Trailers can be loaded fast and simply by all types of the COMBILIFT system, thus significantly improving the transport capacity, flexibility and efficiency. Using the same horizontal movement, railway wagons are also loaded and unloaded by using a twist frame.

Technical features
  • Silo placer and hook roller tipper integrated in one device
  • Standard version applicable for mobile silos acc. DIN 30734 (up to 22.5 m³) and container acc. DIN 30722
  • Supplementary equipment for 2-pocket and PFT mobile silos and for 20’-container (only 4-axle truck)
  • Flat angle for the pick up of container
  • Tipping angle of 98°
  • Low maintenance
  • Load and unloading of railway wagons (ACTS)
  • Special solutions with own design department
  • Assembly independent from truck type
Typical applications of our customers

Technical data / dimensions
CL 19.45CL 26.72CL 35.72
Truck-GVW 19t 26t 32-35t
wheel base 1. to 2. axle 4.200 mm - 4.800 mm 3.500 mm - 4.800 mm 4.500 mm - 5.100 mm
wheel base 2. to 3. axle - 1.350 mm - 1.400 mm 1.350 mm - 1.400 mm
max. silo length 5.000 mm - 6.000 mm 6.150 mm - 7.150 mm 6.150 mm - 7.150 mm
container length 4.000 mm - 5.500 mm 4.000 mm - 7.000 mm 4.000 mm - 7.000 mm
mounting height 300 mm 300 mm 300 mm
hook height 1.570 mm 1.570 mm 1.570 mm
alternatively 1.420 mm(1450 mm) 1.420 mm(1450 mm) 1.420 mm(1450 mm)
tipping angle 94° 98° 98°
working pressure approx. 250 bar 250 bar 280 bar
lifting and tipping capacity 12t 15t 20t
PTO without flange "c" i = 0,8 - 1,0 x n-Motor i = 0,8 - 1,0 x n-Motor i = 0,8 - 1,0 x n-Motor
